Suction Coarse Water Filter For Auxiliary Seawater Pump Inlet BL100 CB/T497-2012 Right Angle Type
Product Description For Marine Sea Water Filters:

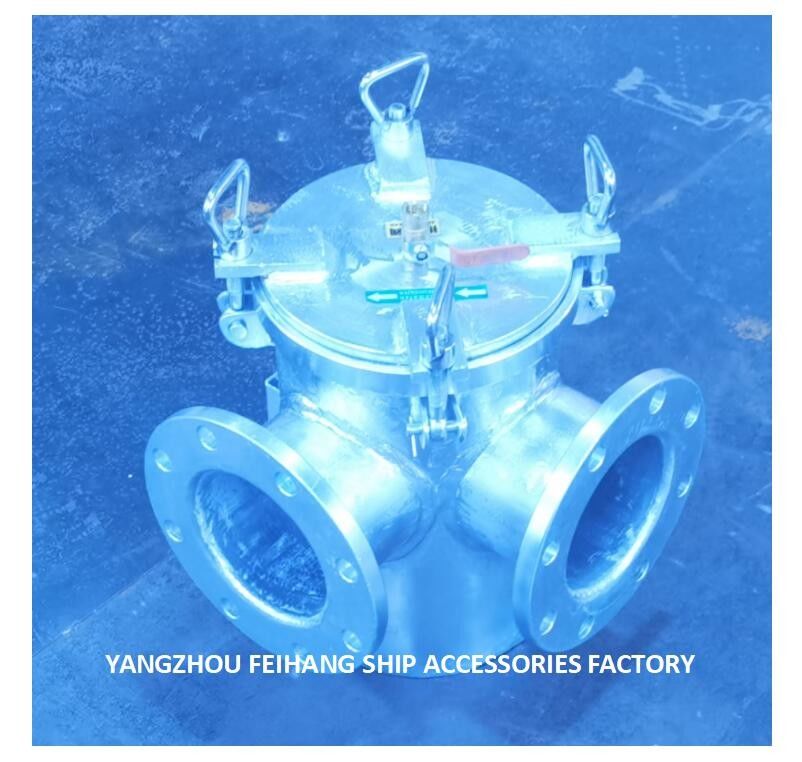

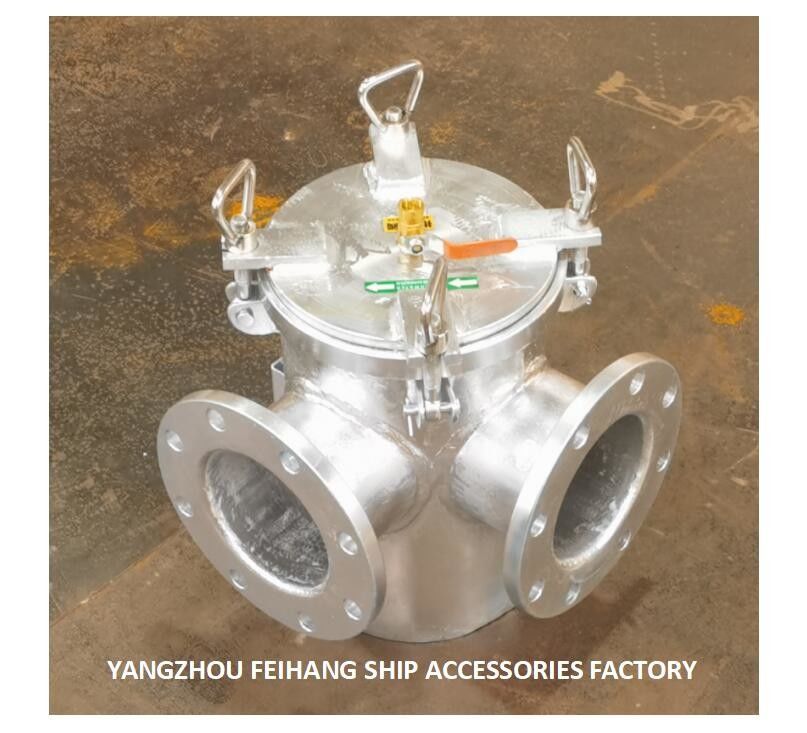

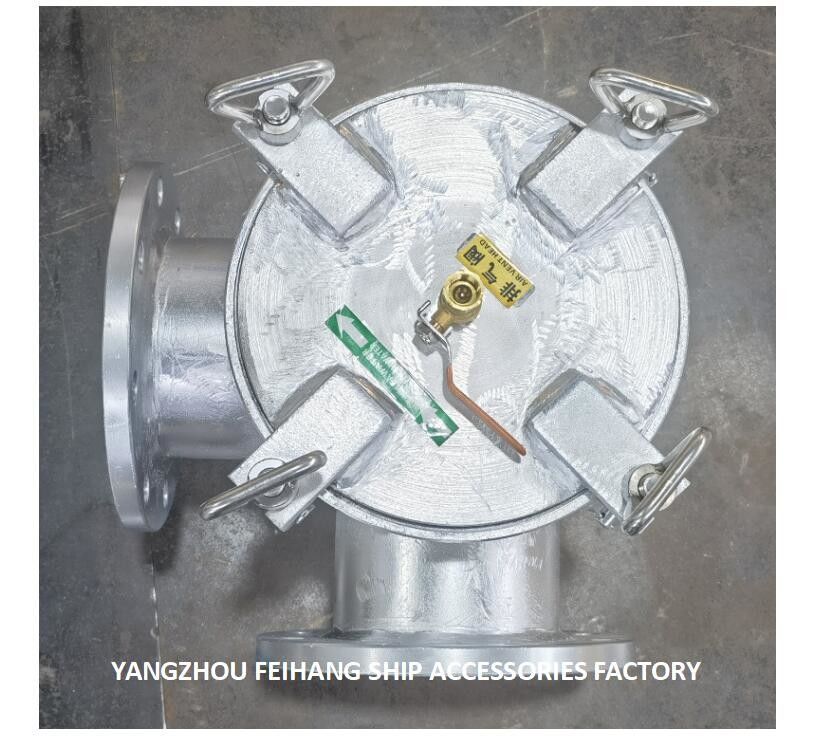

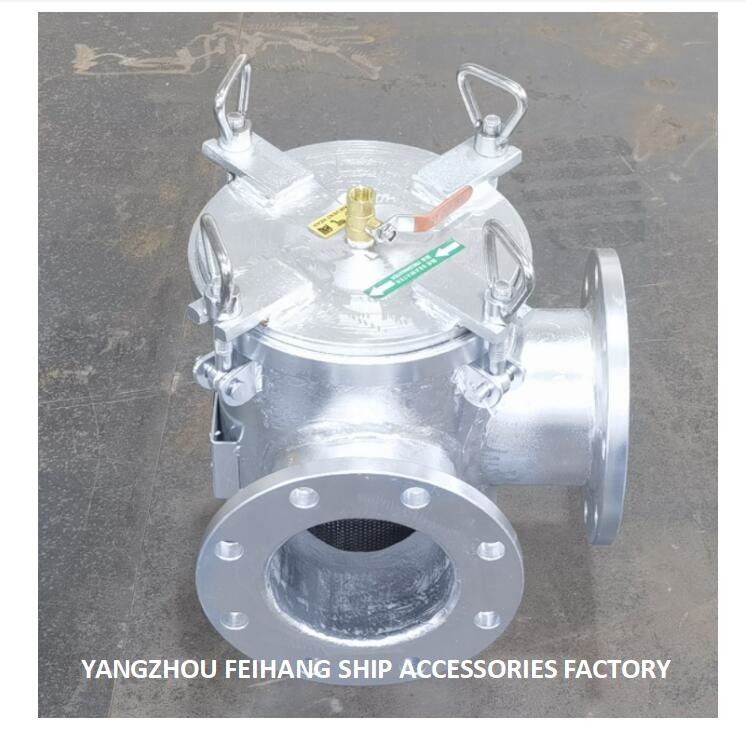

Marine right angle seawater filter - right angle suction coarse water filter
When it comes to right angle seawater filters, many of our customers cannot distinguish between the import and export directions. Here, we will provide a brief introduction for DN100 caliber:
From the above icon, it can be seen that,
BL100 CB/T497: It is a right in and left out right angle seawater filter, with inlet and outlet angles of 90 °.
BR100 CB/T497: It is a right angle seawater filter with a left in and right out angle, with the inlet and outlet at a 90 ° angle.
Features Marine Sea Water Strainers:
Marine right angle seawater filter - right angle suction coarse water filter can be used in various places:
Marine right angle seawater filter BLS100 CB/T497-2012
Main seawater pump inlet right angle seawater filter BR100 CB/T497-2012
Auxiliary seawater pump inlet right angle suction coarse water filter BL100 CB/T497-2012
Freshwater pump inlet right angle seawater filter BR100 CB/T497-2012
Bilge fire pump inlet seawater filter BL100 CB/T497-2012
Product Name: Marine Sea Water Strainer
NOMINAL DIAMETER: DN40-DN1000
Median function: Sea Water
Connection Type: Flanged
Filter Mesh: 1-8mm
SURFACE TREATMENT: OT-DIP GALVANIZED
Sea water filter: Yes
Marine sea water filter: Yes
Stainless steel coarse water filter: Yes
Technical Parameters Marine Sea Water Filters:
Parameter
Value
Median function
Sea Water
Body Material
Carbon Steel or Stainless Steel
NOMINAL PRESSURE
0.25-1.5Mpa
Design standards
CB/T497,CBM1061
Application
Marine Sea Water
Connection Type
Flanged
Filter Element
Stainless Steel Mesh
SURFACE TREATMENT
OT-DIP GALVANIZED
Filter Mesh
1-8mm
NOMINAL DIAMETER
DN40-DN1000
Applications:
FEIHANG offers a range of marine sea water strainers in A, AS, BL, BR-type models, made with carbon steel or stainless steel material. The filter mesh size ranges from 1-8mm, with nominal pressure 0.25-1.5Mpa and nominal diameter DN40-DN1000. This sea water filter is certified by factory certificate, test report and material report, with a minimum order quantity of 1pcs. The price is discussed personally, and the packaging is export packaging. The delivery time is 3-5days, with payment terms of 100% prepaid, and a maximum supply ability of 100pcs/day.
FEIHANG marine sea water strainers are perfect for use in sea water filter and stainless steel coarse water filter. This product has a median function of sea water, and is designed to provide reliable and effective filtration. It is perfect for any marine application, and offers high performance and durability.
Customization:
Marine Sea Water Strainer
Brand Name: FEIHANG
Model Number: A,AS,BL,BR-type
Place of Origin: Yangzhou, Jiangsu, China
Certification: Factory certificate, test report, material report
Minimum Order Quantity: 1pcs
Price: Discuss personally
Packaging Details: Export packaging
Delivery Time: 3-5days
Payment Terms: 100% prepaid
Supply Ability: 100pcs/days
Application: Marine Sea Water
Filter Element: Stainless Steel Mesh
Connection Type: Flanged
Body Material: Carbon Steel Or Stainless Steel
SURFACE TREATMENT: OT-DIP GALVANIZED
FEIHANG Marine Sea Water Strainer is the ideal choice for industrial, commercial, and marine applications. It is designed to remove coarse particles from incoming sea water, and is made from stainless steel mesh and carbon steel or stainless steel body materials with OT-DIP GALVANIZED surface treatment. It has a flanged connection type, and comes in A,AS,BL,BR-type model numbers. This product is certified by Factory certificate, test report, material report, and has a minimum order quantity of 1pcs. It is packaged for export, with a delivery time of 3-5days, and 100% prepaid payment terms. FEIHANG can supply 100pcs of this product per day. Contact us directly for pricing.
Support and Services:
Marine Sea Water Strainer Technical Support and Service
We provide the following technical support and service for Marine Sea Water Strainer:
Comprehensive troubleshooting and technical advice
24/7 customer service support
Replacement parts delivery
Regular maintenance and repair
On-site support and installation
Upgrades and product modifications
Packing and Shipping:
Packaging and Shipping
Marine Sea Water Strainer is packaged in cardboard boxes with foam inserts for protection. The box should be sealed with shipping tape, and labeled with the appropriate shipping information.
The product should be shipped by ground or air, depending on the customer’s requirements. All shipments should be fully insured and trackable.
FAQ:
A1: The Brand Name of Marine Sea Water Strainer is FEIHANG.
A2: The Model Numbers of Marine Sea Water Strainer are A,AS,BL,BR-type.
A3: The Place of Origin of Marine Sea Water Strainer is Yangzhou, Jiangsu, China.
A4: Marine Sea Water Strainer can provide Factory certificate, test report, material report.
A5: The Minimum Order Quantity of Marine Sea Water Strainer is 1pcs.
