IMPA872009 Can Water Strainers-Marine Can Water Filters Modle:JIS 5K-150A LA-Type JIS F7121
The marine cylindrical water filter is a filter designed and produced in accordance with the JIS F7121 standard. Its English name is MARINE CAN WATER FILTERS, which can usually be abbreviated as CAN WATER STRAINERS.
We can classify the 5K-150A specification into the following three types based on the layout direction of seawater pipelines:
CAN WATER STRAINERS 5K-150A S-TYPE JIS F7121
5K-150A cylindrical water filter - straight through cylindrical seawater filter
CAN WATER STRAINERS 5K-150A LA-TYPE JIS F7121
5K-150A Left Type Right Angle Barrel Type Seawater Filter
CAN WATER STRAINERS 5K-150A LB-TYPE JIS F7121
5K-150A Right angle cylindrical seawater filter
Product Description For Marine Can Water Filters-Marine Can Water Strainer:
We produce two kinds of straining water equipments for different applications: Can Water Striners and Sea Water Striners. Both solutions are made of robust casting steel, designed for water pipelines in ships, and equipped with an inner strainer. In addition, the connection flange size of the products adhere to Japanese Industrial Standards (JIS) 5kgf/cm2 or JIS 10kgf/cm2. With these straining water filters, you can be sure of an efficient and quality output.
Features Marine Can Water Filters-Marine Can Water Strainer:
Product Name: Marine Can Water Filter Or Marine Can Water Strainers
Design Standards: JIS F7121
Flanged Design: 5K Or 10K
Filter Material: Stainless Steel
Nominal Diameter: DN25-DN550
Features: Simplex Strainers and Marine Sea Water Filters
Technical Parameters For Marine Can Water Filters-Marine Can Water Strainer:
Name
Marine Can Water Filter
Flanged Design
5K Or 10K
Test Pressure
0.75Mpa
Filtration Accuracy
1-8mm
Country of Origin
China
Surface Treatment
EPOXY PAINT
Nominal Diameter
DN25-DN550
Design Standards
JIS F7121
Nominal Pressure
0.39Mpa
Type
STRAIGHT-THROUGH, RIGHT-ANGLE
Let's understand the differences in structural dimensions below:

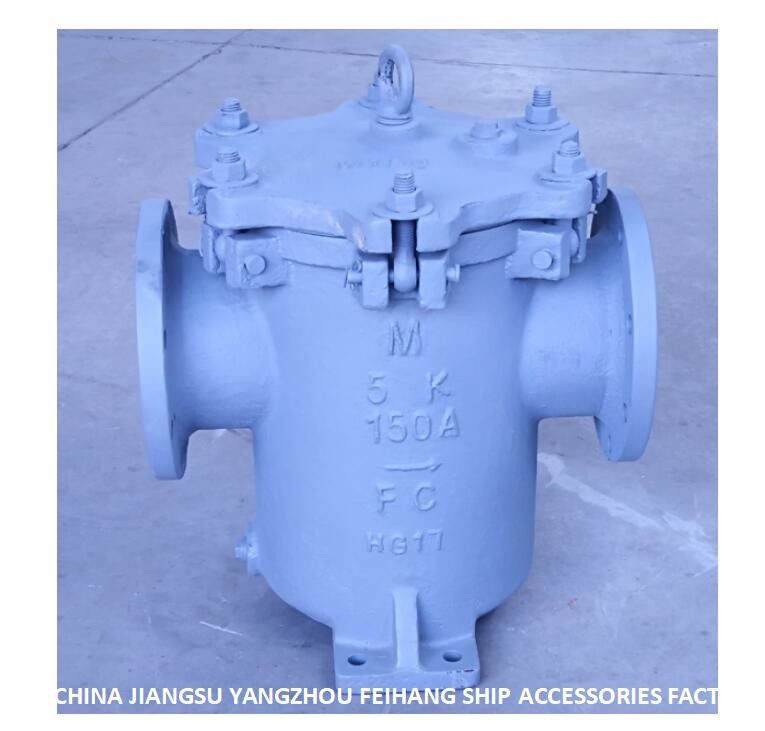

CAN WATER STRAINERS 5K-150A S-TYPE JIS F7121
5K-150A cylindrical water filter - straight through cylindrical seawater filter
S-type straight through type: The inlet and outlet flanges of this cylindrical water filter are on the same horizontal line, and the detailed structural dimensions are shown in the following figure:

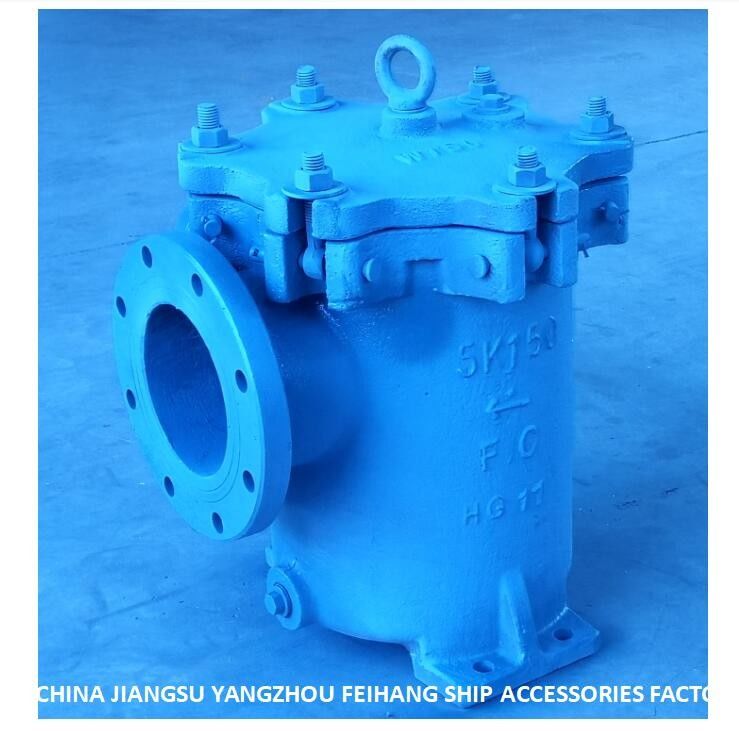

CAN WATER STRAINERS 5K-150A LA-TYPE JIS F7121
5K-150A Left Type Right Angle Barrel Type Seawater Filter
LA-TYPE left type right angle type: The inlet and outlet flanges of this cylindrical water filter are at a 90 ° right angle, and seawater enters the filter body from the right side and flows out from the left side after filtration. The detailed structural dimensions are shown in the following figure:
CAN WATER STRAINERS 5K-150A LB-TYPE JIS F7121
5K-150A Right angle cylindrical seawater filter
LB-TYPE right angle type: The inlet and outlet flanges of this cylindrical water filter are at a 90 ° angle, and seawater enters the filter body from the left side and flows out from the right side after filtration. The detailed structural dimensions are shown in the following figure:
Applications For Marine Can Water Filters-Marine Can Water Strainer:
The FEIHANGMarine Can Water Filter is a S, LA, LB-TYPE basket type strainer, specifically designed for sea water filtration. It is made of cast iron FC200 material, with nominal diameter of DN25-DN550 and flanged connection type. This filter can provide high-performance filtration of sea water, with a basket type strainers that can effectively remove impurities from the water. Whether for commercial or industrial applications, this filter can provide a reliable and economical solution for sea water filtration.
Customization For Marine Can Water Filters-Marine Can Water Strainer:
MARINE SEA WATER FILTER
Brand Name: FEIHANG
Model Number: S,LA,LB-TYPE
Place of Origin: Yangzhou, Jiangsu, China
SURFACE TREATMENT: EPOXY PAINT
Name: Marine Can Water Filter
Filter Material: Stainless Steel
Flanged Design: 5K Or 10K
Body Material: Cast Iron FC200
MARINE SEA WATER FILTER - FEIHANG offers a range of simplex strainers and stainless steel filters for marine sea water filtration. Our filters are made with cast iron FC200 and stainless steel. The flanged design is available in either 5K or 10K. The filter surface is treated with epoxy paint for added durability and protection.
HOW TO ORDER FOR THE MARINE CAN WATER FITLERS
You can choose according to the material manual IMPA
Support and Services For Marine Can Water Filters-Marine Can Water Strainer:
Marine Can Water Filter Technical Support and Service
We are dedicated to providing our customers with the highest quality water filters available. Our Marine Can Water Filter includes technical support and service to ensure its longevity and performance.
We offer a 1-year warranty on all Marine Can Water Filter components.
We have a team of certified technicians to answer any technical questions about the filter.
We offer regular maintenance and servicing of the filter to keep it in optimal condition.
Our customer service team is available 24/7 to answer any questions or address any concerns.
We provide free shipping and returns on all Marine Can Water Filter orders.
Packing and Shipping For Marine Can Water Filters-Marine Can Water Strainer:
Packaging and Shipping for Marine Can Water Filter
The Marine Can Water Filter will be shipped in a sturdy cardboard box measuring 15.75" x 11.5" x 11.75". The box has been selected to protect the filter during shipping. The filter is secured in the box with bubble wrap and foam padding.
We use a variety of shipping methods to ensure your order is delivered quickly and safely. We use USPS Priority Mail, FedEx Ground, and UPS Ground. All orders are shipped within 1-2 business days of payment.
FAQ:
The brand name is FEIHANG and the model number is S,LA,LB-TYPE.
The Marine Can Water Filter is manufactured in Yangzhou, Jiangsu, China.
The Marine Can Water Filter can filter both saltwater and freshwater.
The Marine Can Water Filter has a flow rate of up to 2.5 liters per minute.
The Marine Can Water Filter has an average filter life of up to 6 months.
